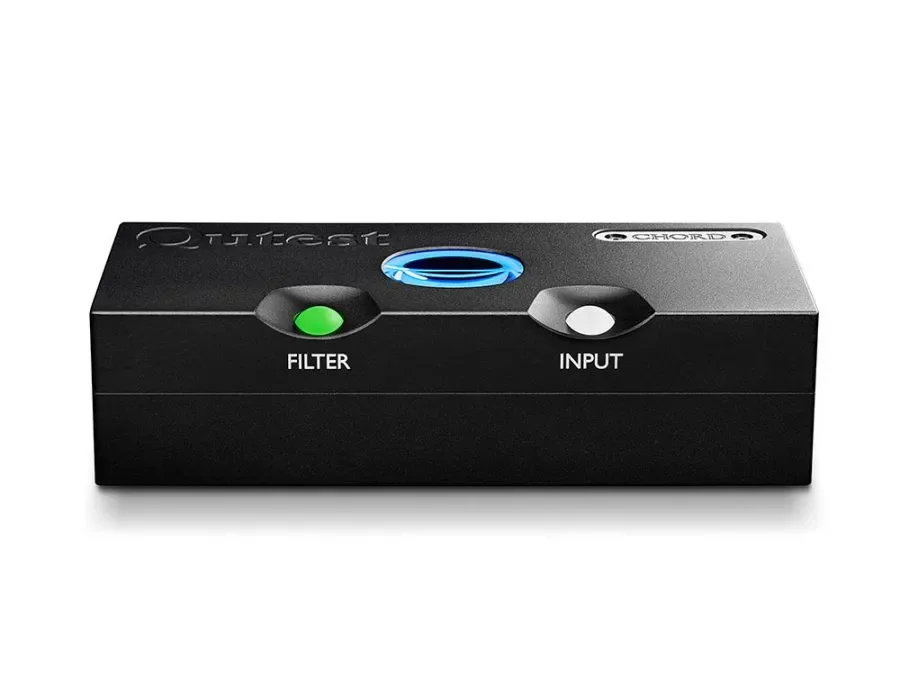

Hot on the tails of the incredible HUGO 2, comes the Chord Qutest DAC, and yes, it is rather cute!
The new Qutest is based on the latest proprietary Rob Watts’ FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp. Qutest uses an all-new precision-machined aluminium chassis and includes several new features, including fascia controls.
Qutest uses the same award-winning internal DAC architecture and proprietary software coding as the Hugo 2, giving it proven class-leading technical and sonic performance. Qutest also offers Hugo 2’s unique user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility.
All-new aluminium casework
The Qutest DAC chassis is all-new. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminium billet. The Qutest PCB nestles within a shallow cavity in the solid aluminium chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.
Qutest’s new square-edge chassis design created by owner and Chief Designer John Franks retains the popular circular magnifying porthole window, which reveals the custom Chord Electronics’ circuit board within. Qutest’s control spheres (for user-selectable frequency-shaping and input selection) illuminate with useful colour-coding information denoting sample frequency and filter used; brightness settings are user-adjustable. A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with partnering devices.
New levels of technical performance for a compact DAC
The latest FPGA and advanced WTA (Watts Transient Aligned) filters have been implemented in the Qutest, bringing a wide variety of performance improvements over the 2Qute in a number of areas. Performance gains have been made in timing accuracy, noise reduction and dynamic range and tap length, the technical indicator of how complex the interpolation filter is, has more than doubled compared to its predecessor, to 49,152.
User-selectable filtering option
A four-function switch filter, operated by its own control sphere, offers a useful degree of user-selectable frequency-shaping, bringing warm and soft or transparent and incisive presentations, giving additional flexibility and user control.
Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
Pulse array: 10 element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
THD: <0.0001% 1kHz 3v RMS 300Ω
THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v)
Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
Channel separation: 138dB at 1kHz 300Ω
Dimensions: 4.5cm (H) 16cm (W) 8.8cm (D)
Boxed Weight: 1500g
